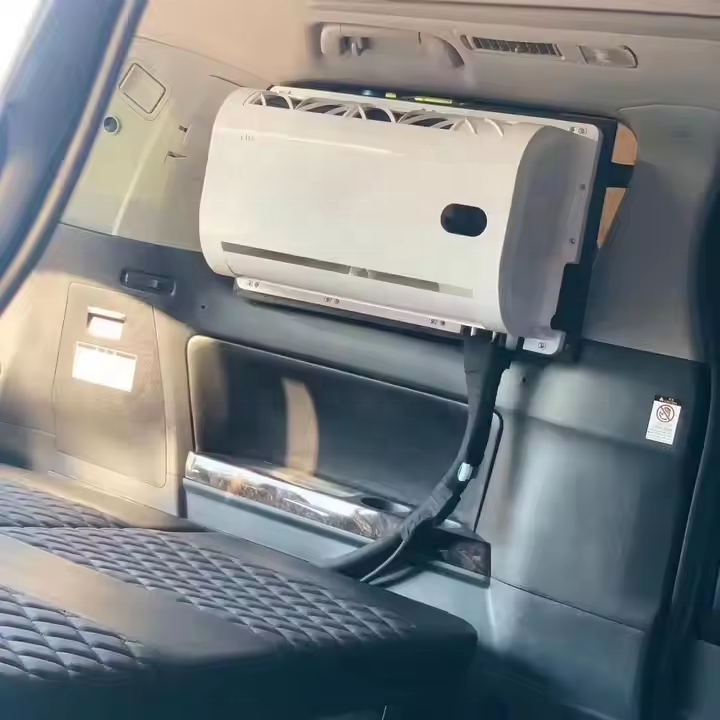

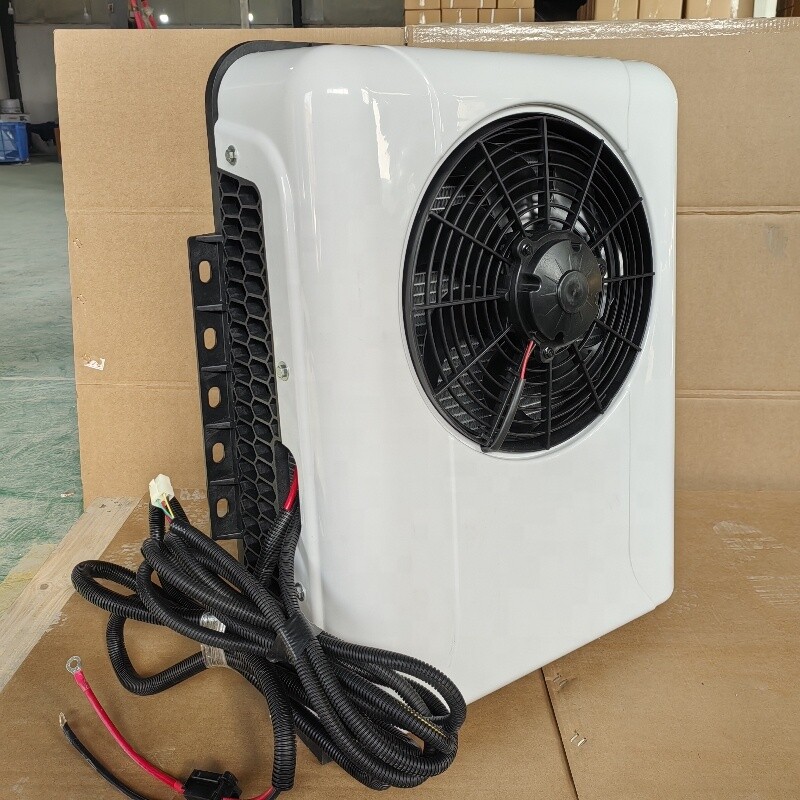

Portable air conditioner 24v car air conditioner parking air conditioner 12v car air conditioner electric car air conditioner
MESSAGE

 Product Description

To ensure that drivers are well rested and driving safety is increased, our air conditioning systems ensure comfortable temperature and humidity, creating an ideal climate for trucks, buses and vans with electric parking cooler systems. Our compressor drive system is equipped with refrigerant R134a and is connected to the 12/24V vehicle battery.

High-quality components set high quality standards for parking coolers and ensure a long service life while minimizing maintenance expenses. Electric parking coolers reduce engine idling time, thus saving fuel. Low-pressure cut-off ensures engine start.


photobank (217).jpg

photobank (24).jpg

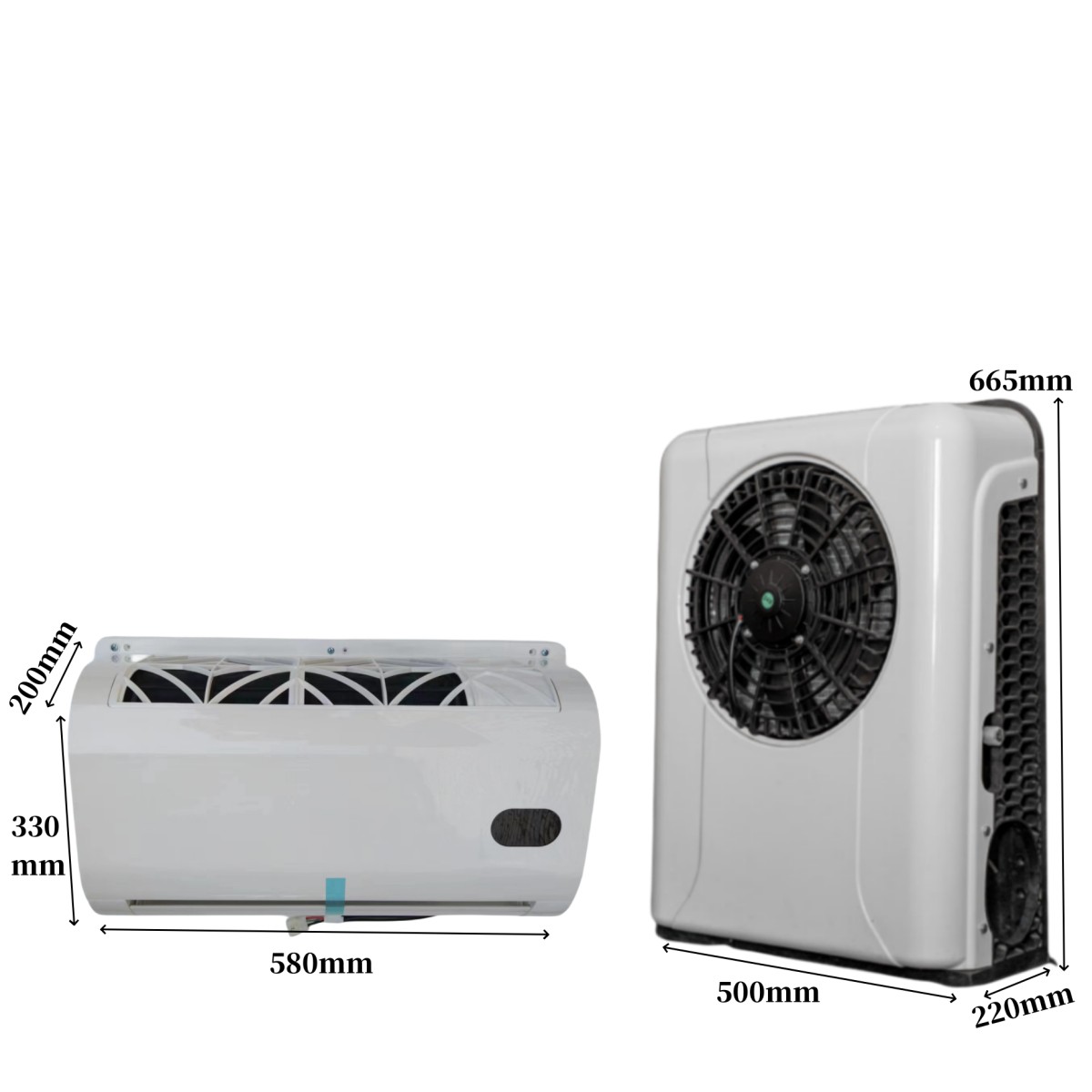

photobank (23).png


Specification


12V Product parameters
Power300-800Wrated voltage12V
cooling capacity600-2000Wbattery requirements≥200A
rated current55ArefrigerantR134a
maximum current75Aelectronic fan air volume2000M³/h


24V Product parameters

Power500-1000Wrated voltage24V
cooling capacity2600Wbattery requirements≥150A
rated current37ArefrigerantR134a
maximum current50Aelectronic fan air volume2000M³/h


Details of AccessoriesHa5ca3214b2444b82af80aeaf1206ce43y.jpg



Evaporator


  1. 12V/24V voltage optional.

  2. cold and cold/hot optional.

  3. power 80W.

  4. 1.5 Ton O-ring expansion valve.

  5. The heating function is heated by hot water from the tank.

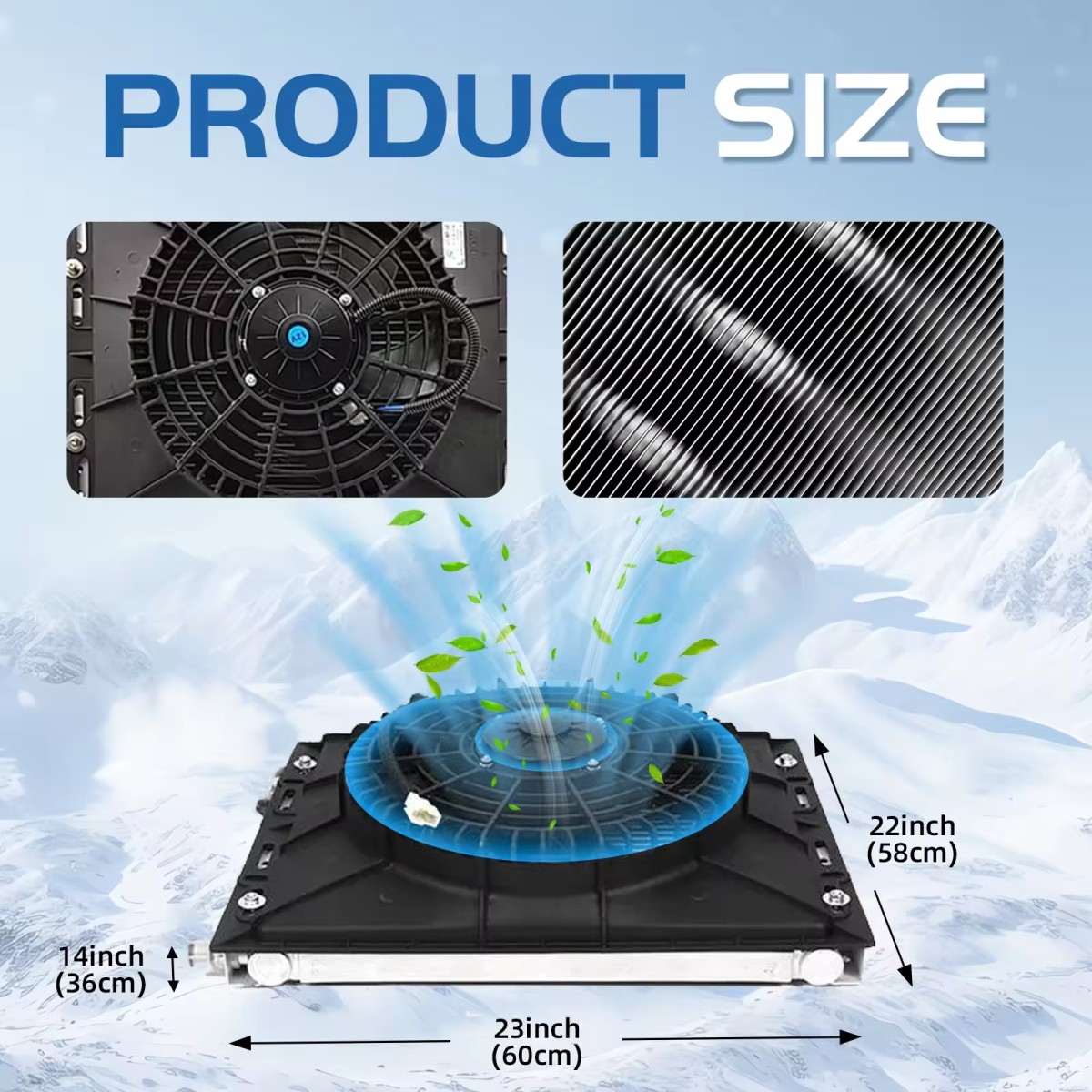

Electronic fan


  1. 120W super strong electronic fan.

  2. using pure copper motor.

  3. six fan blades.

  4. strong and durable


    photobank (242).jpg

    photobank (242).jpg

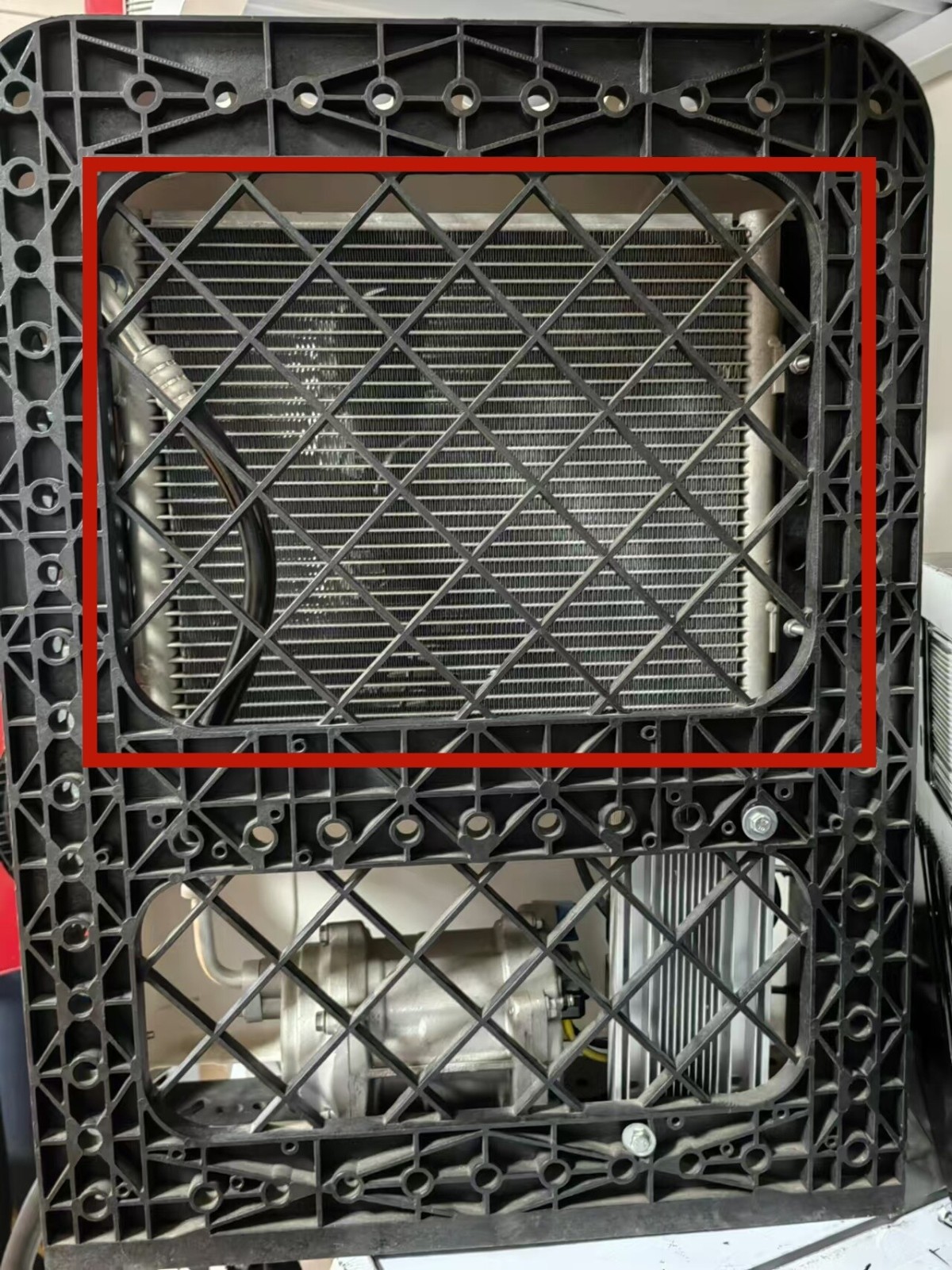

Condenser

  1. Encryption is thicker

  2. #6 and #8 male O-ring fittings.

  3.  All aluminum material

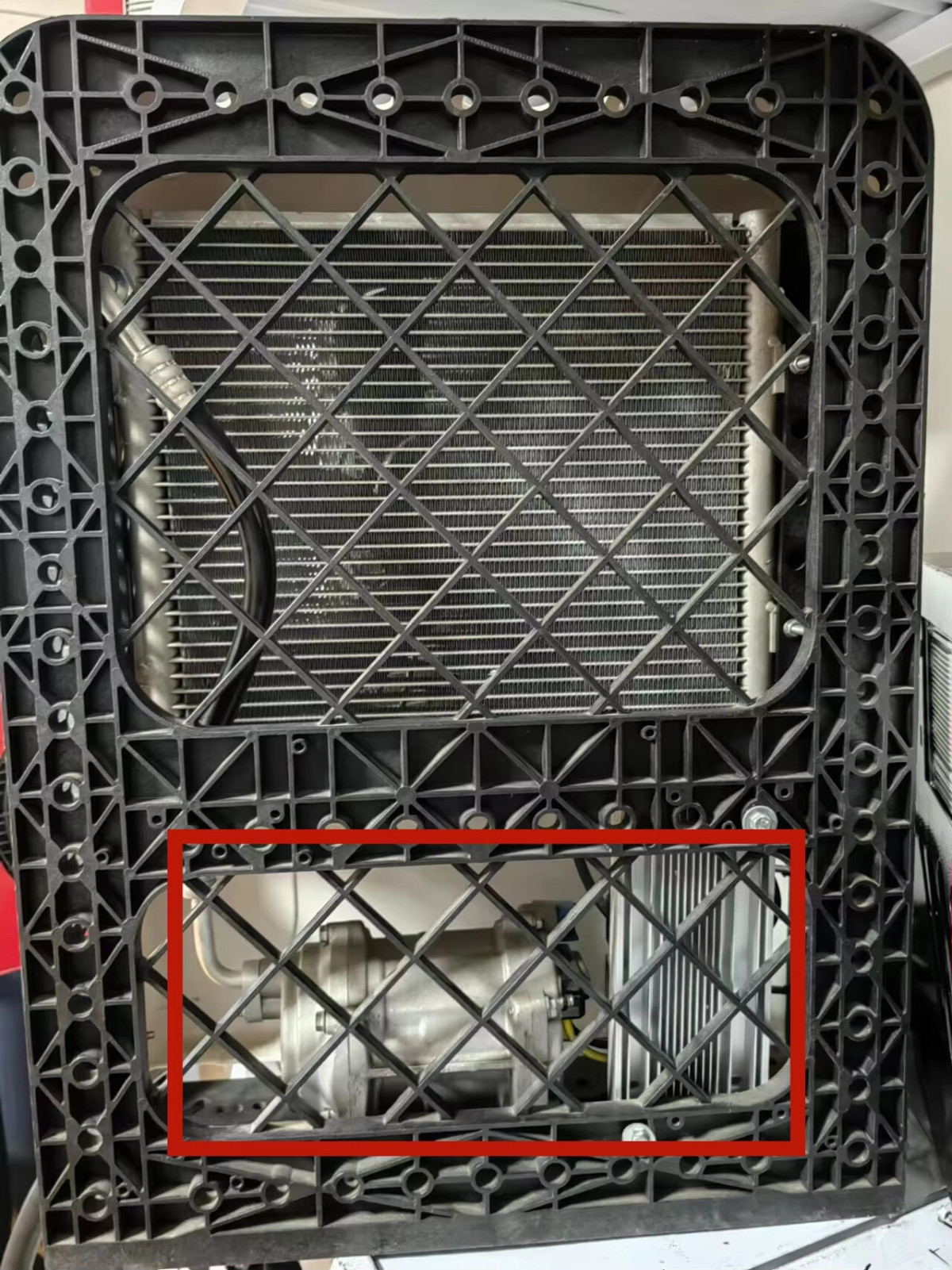

4th Generation Compressor

Scroll compressor, energy saving, efficient operation, higher efficiency, better cooling effect. Small size,

light weight, low noise, smooth operation. Low maintenance costs. Cooling capacity more than 2800w.

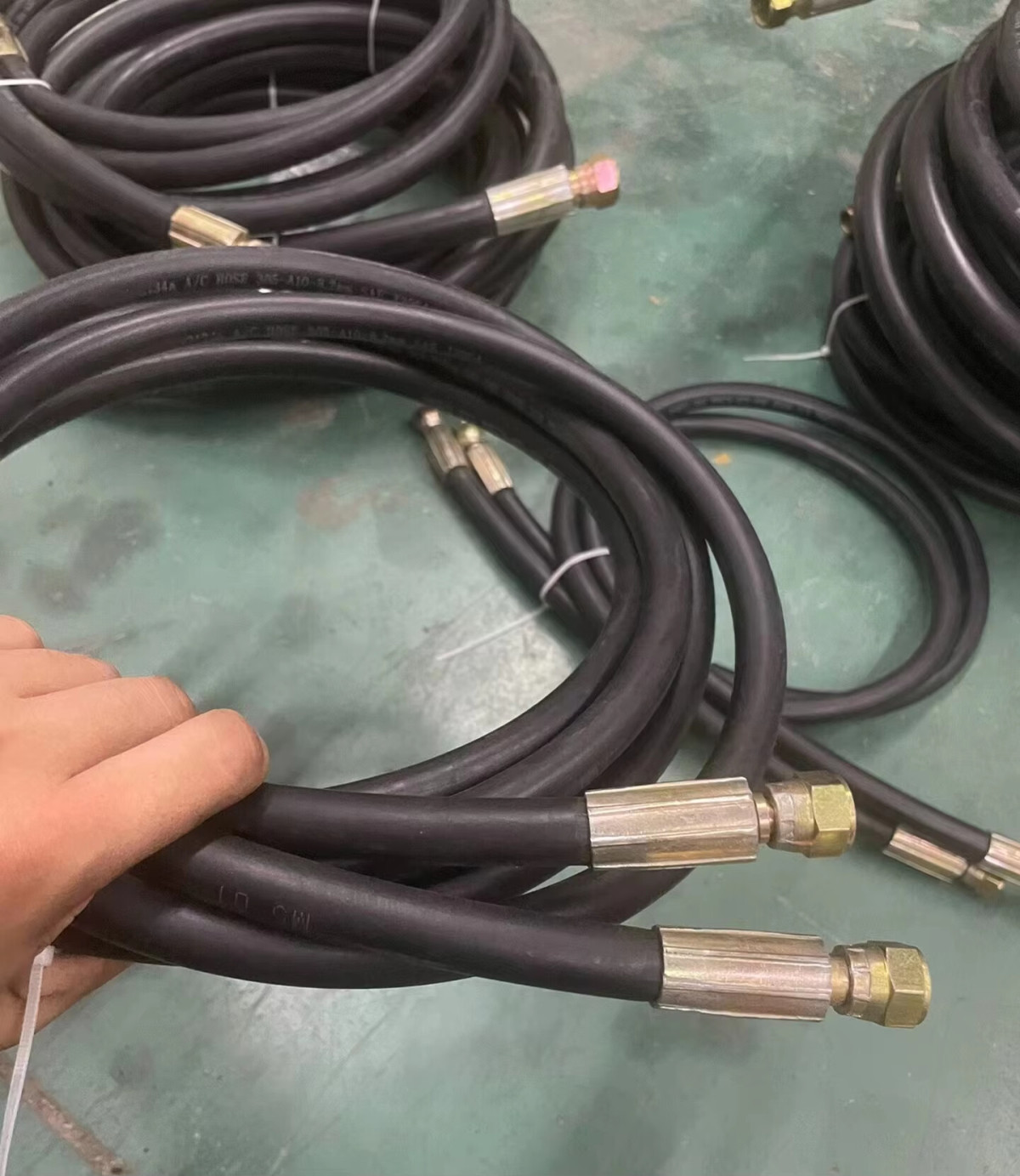

Hose

  1. BH8:3.5 meters.

  2. BH10.5:2 meters.

  3. BH13:3 .5meters

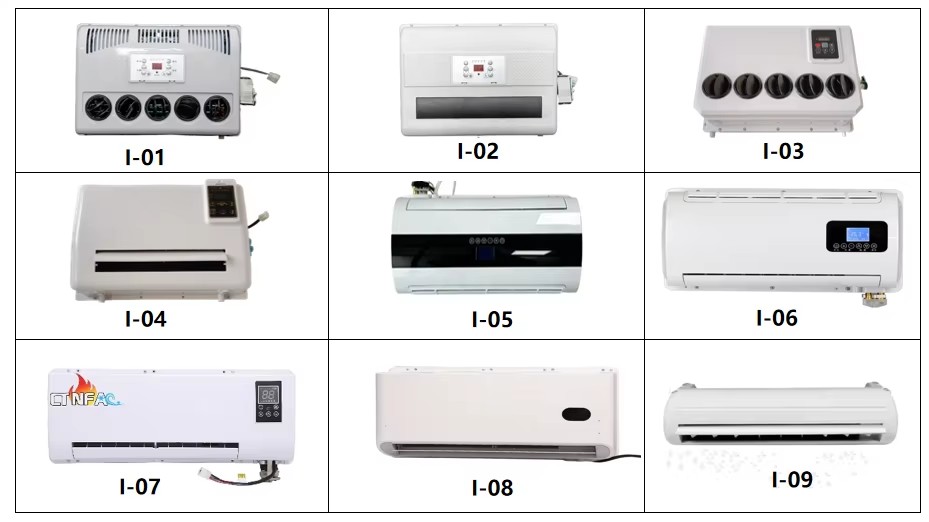

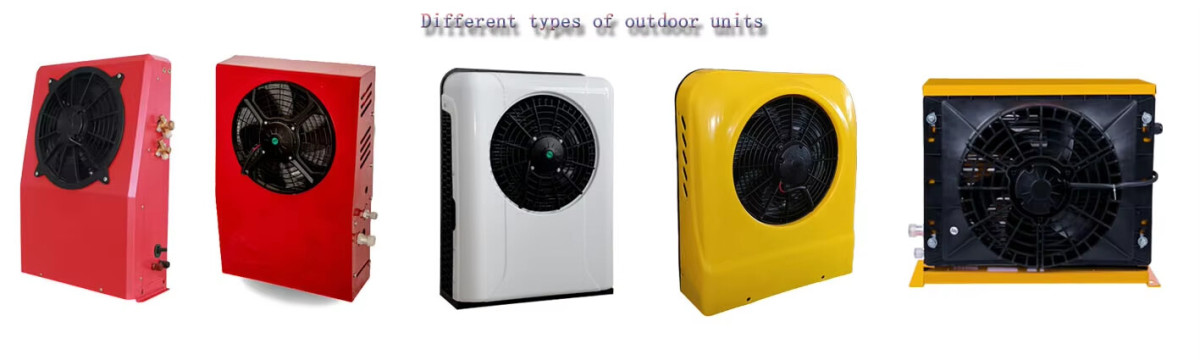

Different internal machines can be matched with different shells, which can be matched according to individual needs.

We are a parking air conditioner manufacturer, supporting customization and OEM production. We have various styles of parking air conditioners and sell a full range of parking air conditioner accessories, air conditioner compressors, controllers, and various styles of evaporator boxes.

Factory direct sales, high quality and low price.

We have many years of production experience, a complete sales team, shipping agents and a complete after-sales service system.

Choose us, we will provide you with one-stop service!
