The parking air conditioner operates by circulating refrigerant within the air-conditioning system. Inside the cab, the refrigerant in the evaporator absorbs heat and transitions from liquid to gas, lowering the temperature. In the condenser, the high-temperature, high-pressure gas releases heat, cools down, and returns to a liquid state, effectively transferring heat from inside the cab to the outside.

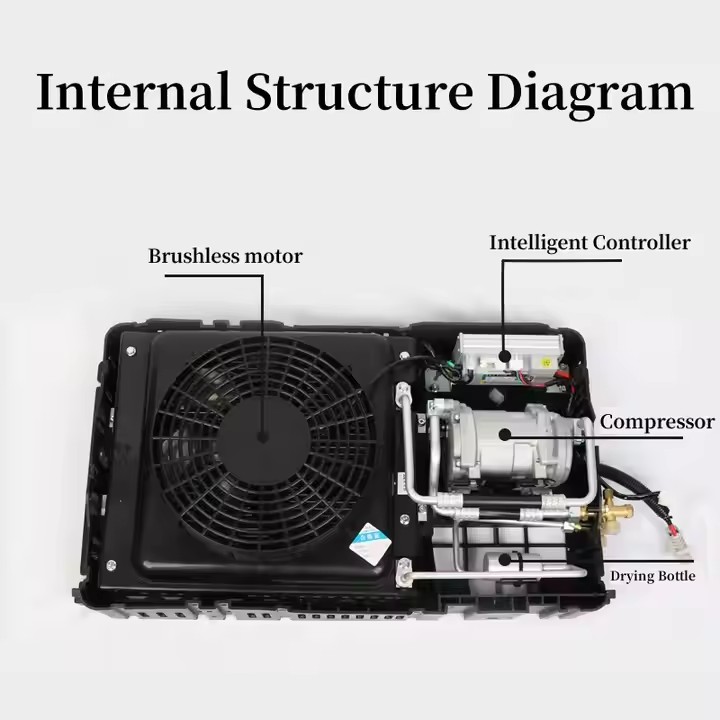

The core component of the parking air conditioner is the compressor, which drives the entire refrigerant cycle. The main parts of the system include the evaporator inside the cab, the condenser outside the cab, and the compressor.

Essentially, the air-conditioning system functions as a self-contained unit. As long as the refrigerant cycle continues, the system operates efficiently.

Product Parameters

Optional: DC 12V

• Rated Cooling Capacity (DC Conversion): 600W / 2800W

• Total Rated Current (DC Frequency Conversion): 10A / 40A

• Rated Evaporation Air Volume: 260 / 560 m³/h

• Evaporation Air Volume: DC brush crossflow fan (three-speed)

• Rated Voltage: DC 12V

• Condensation Air Volume: 2600 m³/h

• Refrigerant Charge: 600 ± 20g R134a

• Refrigeration Oil Model: 90-120ml POE 68

• Electric Scroll Compressor: 12V, 800W

Optional: DC 24V

• Rated Cooling Capacity (DC Conversion): 600W / 2800W

• Total Rated Current (DC Frequency Conversion): 10A / 40A

• Rated Evaporation Air Volume: 260 / 560 m³/h

• Evaporation Air Volume: DC brush crossflow fan (three-speed)

• Rated Voltage: DC 24V

• Condensation Air Volume: 2600 m³/h

• Refrigerant Charge: 600 ± 20g R134a

• Refrigeration Oil Model: 90-120ml POE 68

• Electric Scroll Compressor: 12V, 800W

Product Details

Scroll Compressor Advantages

1. Simple & Reliable Structure – No reciprocating mechanism, resulting in a compact size, lightweight design, fewer components (especially fewer wear-prone parts), and high reliability.

2. Smooth & Stable Operation – Minimal torque variation, high balance, low vibration, and smooth performance, making it easy to operate and automate.

3. High Efficiency – Delivers optimal efficiency within the suitable cooling capacity range.

4. Low Noise – Designed with shock absorption for quieter operation.
