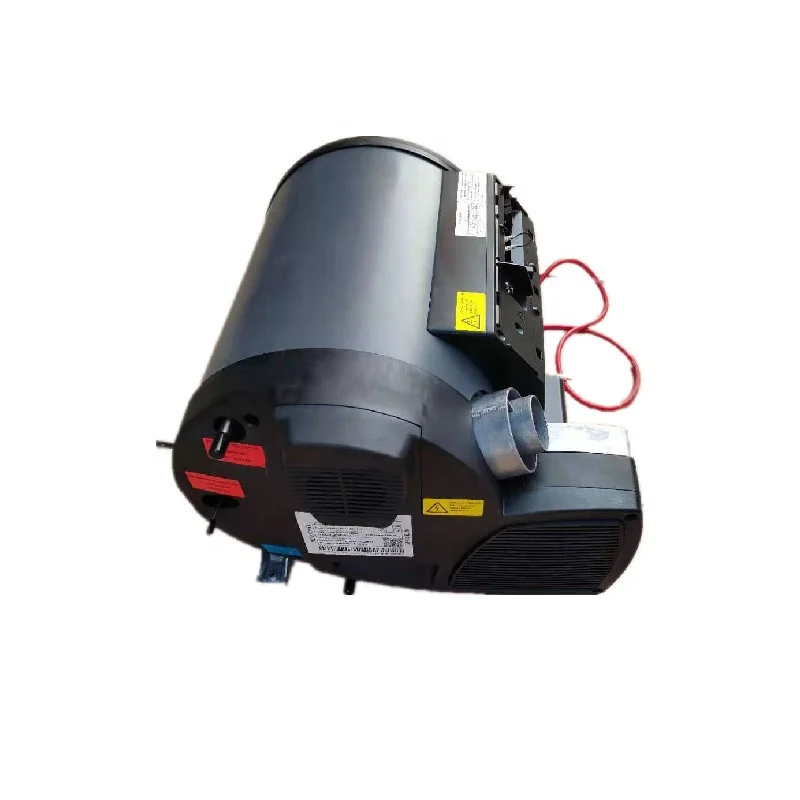

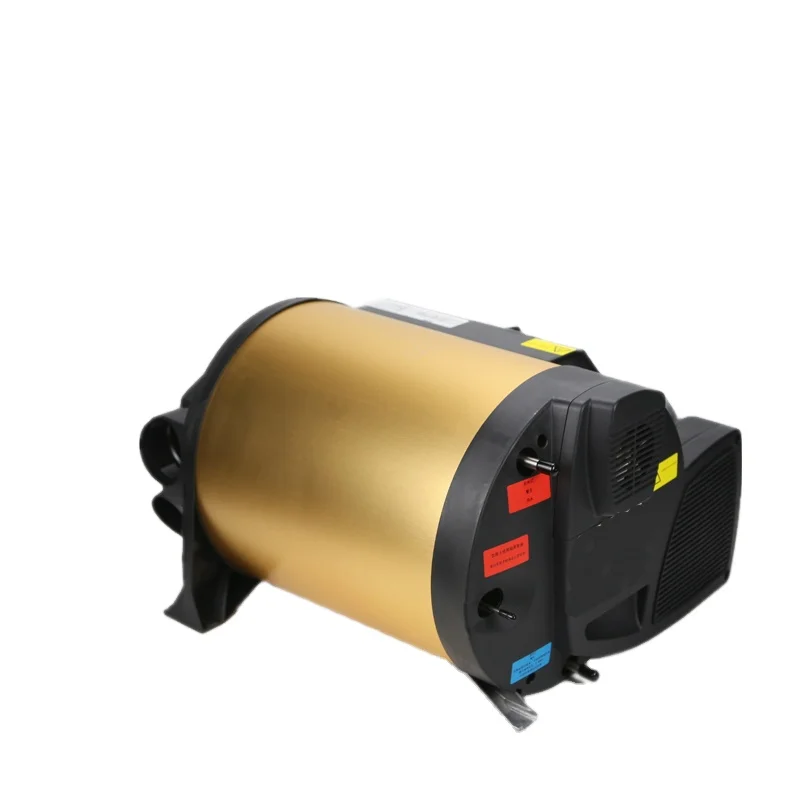

Truma D6E CR-12 caravan & RV high quality 6kw combi diesel air water heater
MESSAGE

 Product Description

The heater is a hot water and warm air integrated machine, which can provide domestic hot water while heating the occupants.  This heater allows use during driving. This heater also has the function of using local electricity heating


Product description and features


  • The gas hot water heater uses liquefied petroleum gas (LPG) as fuel (standard with mains electricity). With four heating channels, it provides indoor heating for RVs, trucks, yachts, and other vehicles. It can also supply hot water for bathing and kitchen use, either simultaneously or separately.
  • Compact design, easy installation, economical, and energy-efficient, with a hybrid mode of gas and mains electricity.
  • High thermal efficiency and complete combustion.
  • Intelligent plateau mode for high-altitude use.
  • Ultra-quiet operation.



Product Parameters


ated voltageDC12Vwater pump maximum pressure0.35mpa
Working voltage working rangeDC10.5V--16VSystem working maximum pressure0.35Mpa
Short-term maximum power consumption5.6AMains voltage220V/110V
average power consumption1.3AMains power consumption900W1800W
Gas typeLiquefied petroleum gas (propane/butane)Mains power consumption3.9A7.8A
Thermal power200040006000Working temperature-20℃--+40℃
fuel consumption g/h160320480Working altitude<5000m
heating mediumWater/ airHost weight15.6kg (without water)
Water tank capacity10LDimensions510*450*300mm


Product Details

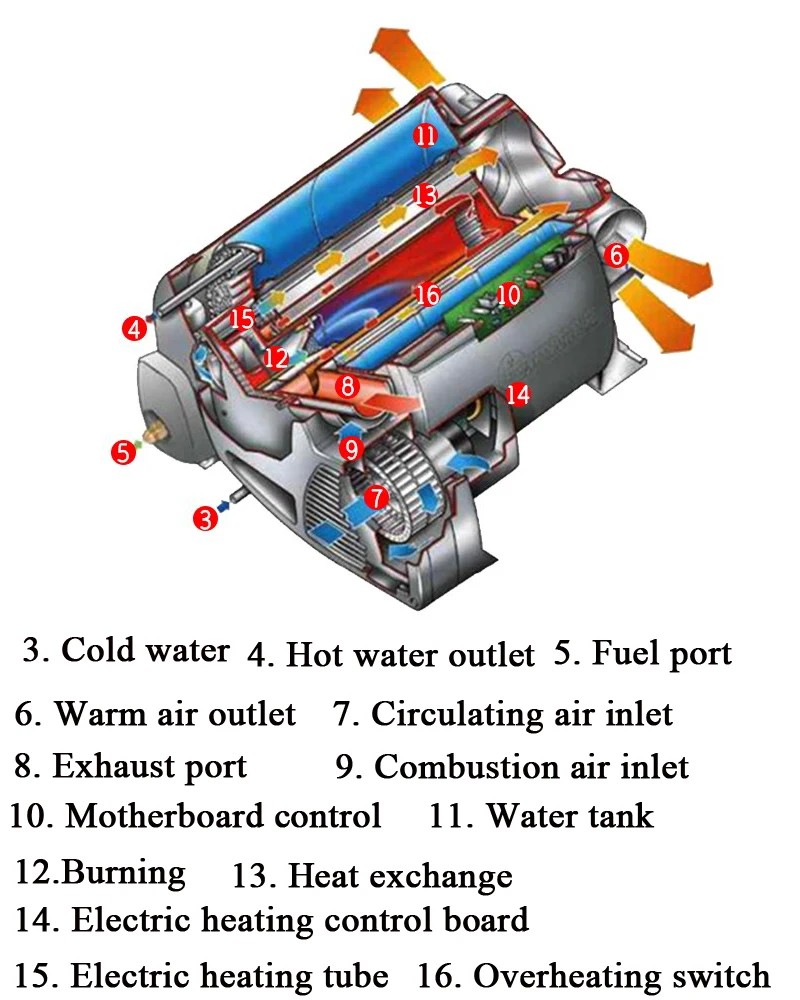

waterheater deial -01.png

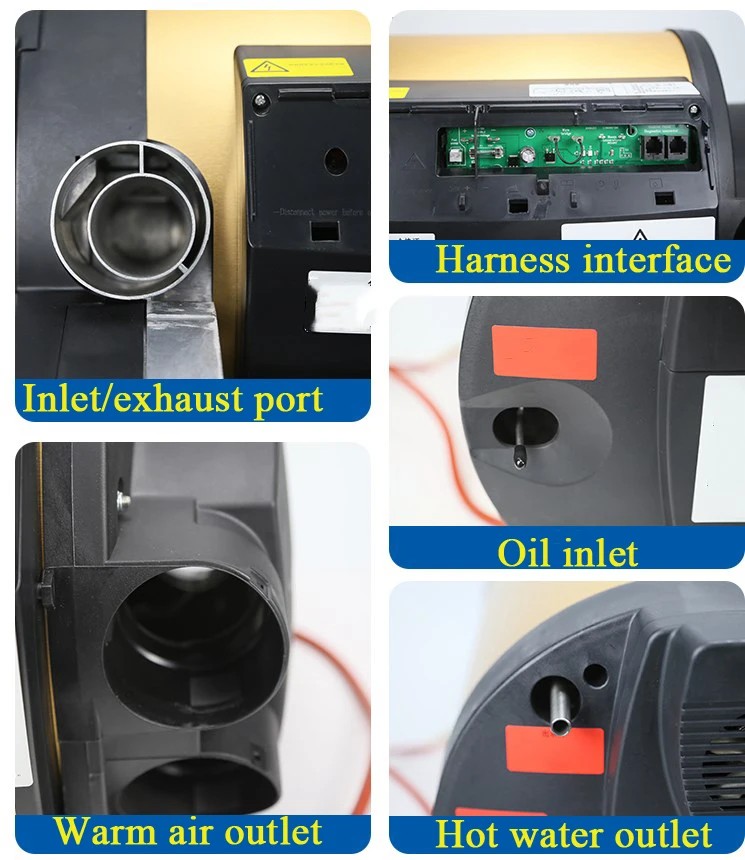

waterheater deial -02.png


Product Installation

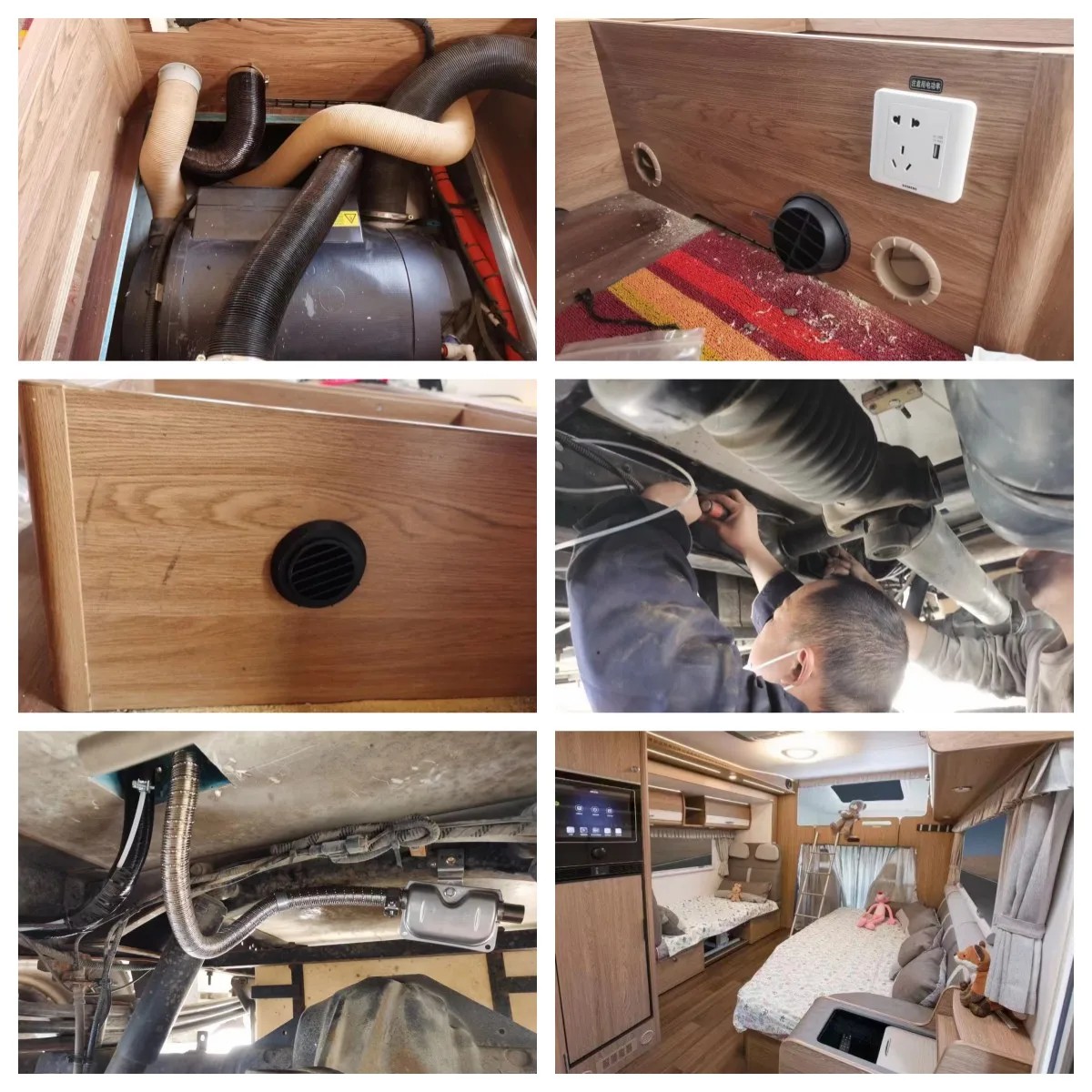

waterheater Install.jpg_.png

RFQ


  1. Is the accessory 100% compatible with Truma?
    Yes, except for electronic accessories, all install parts could be used for Truma D4E/6E.


  2.  Must the 4pcs warm air outlets be open at the same time?
    Yes, it must be open at the same time, but the air volume of the air outlet can be adjusted.

  3. Does the kit include pipes?
    Yes ,
    1 pc exhaust pipe(L=950mm/pc, Dia: 50-55mm),
    1 pc air intake pipe(L=1000mm/pc, Dia: 76-80mm),
    2 pcs ducting pipes(L=4000mm/pc, Dia: 60mm).

  4. How long does it take to heat 10L of water for shower?
    20-30 minutes.

  5. Working height of heater ?
    0-5000 meters, it supports high altitude working mode(0-5000 meters).

  6. How to operate the high altitude mode?
    The heater could adjust the working altitude automatically.

  7. Can it work on 24v?
    Yes, just need a voltage converter to adjust 24v to 12v.

  8. What is the working voltage range?
    It is 200v-250v.

  9. Can it be controlled via a mobile app?
    Yes,It is, we have the Bluetooth app, suitable for the IOS and Android phone.
